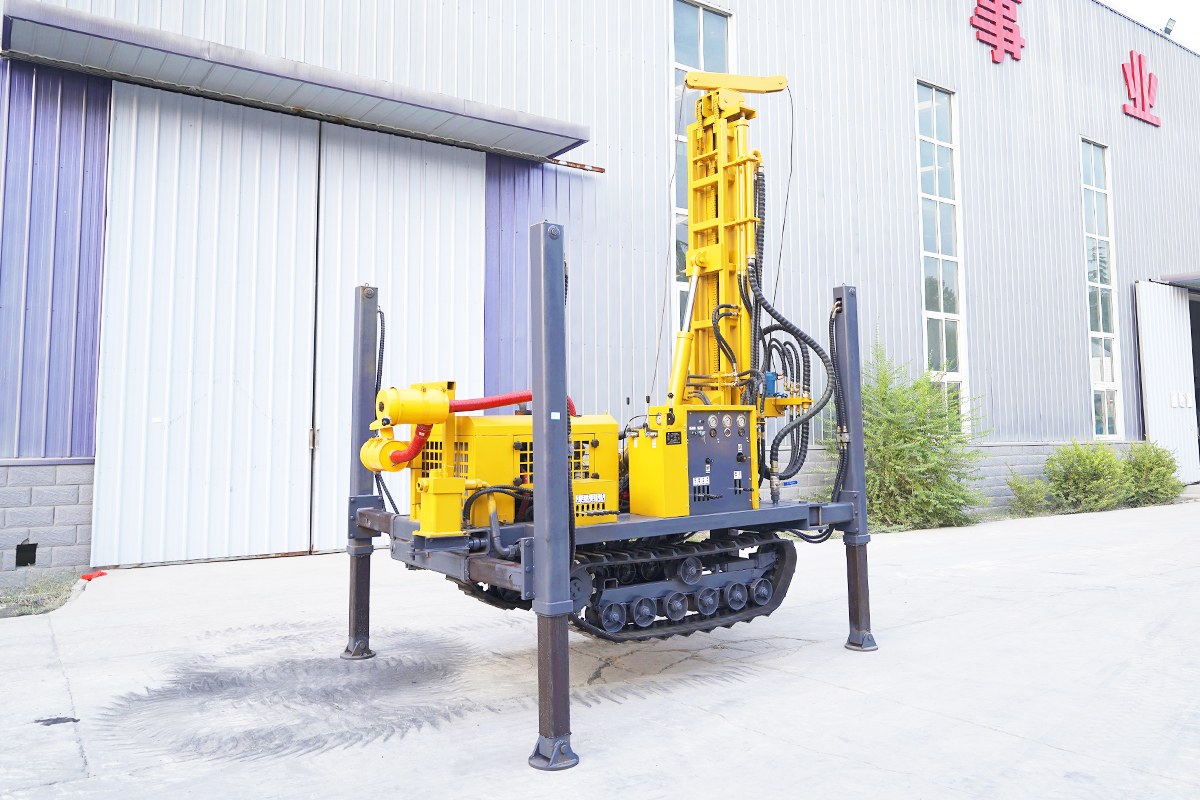

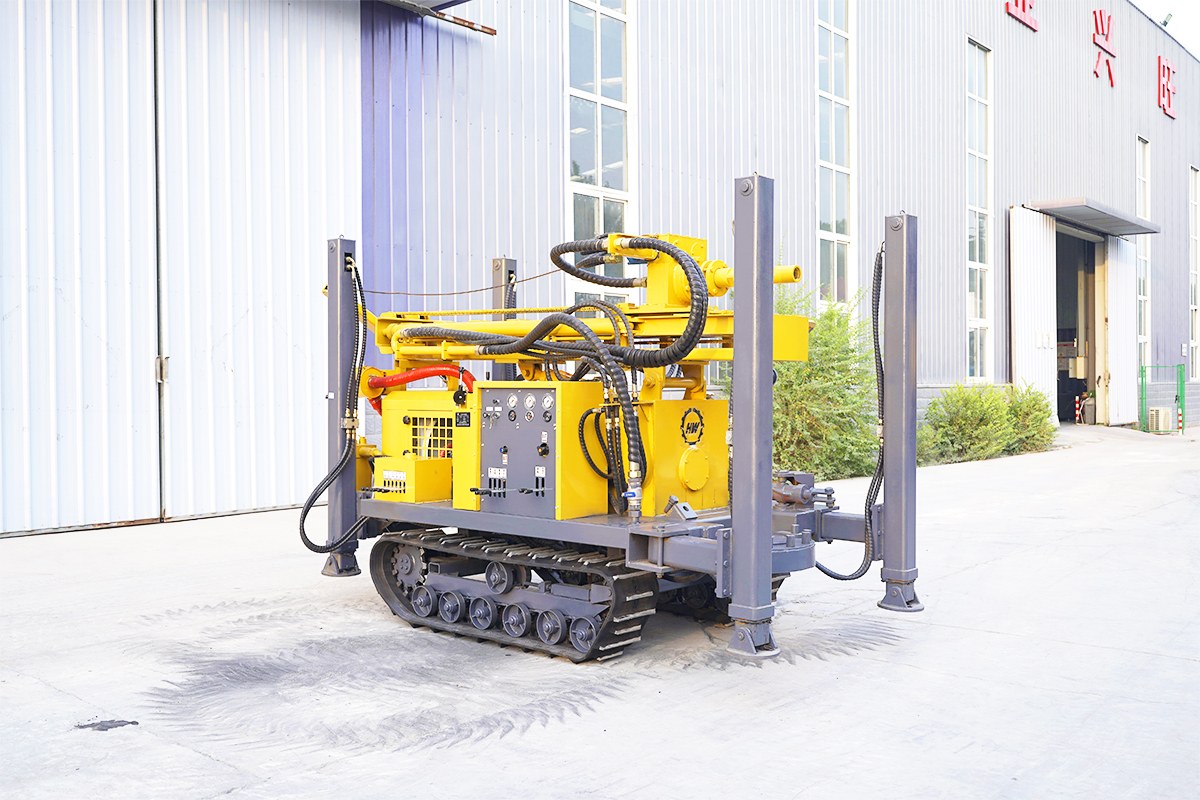

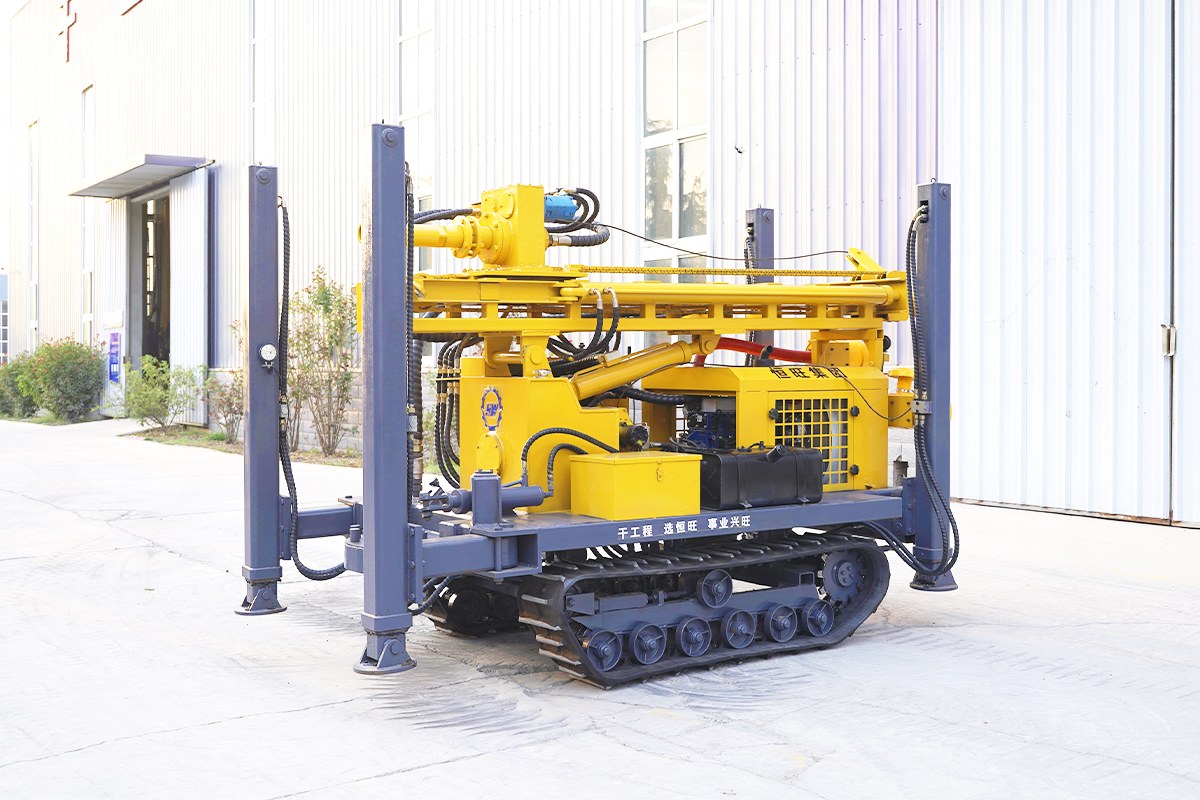

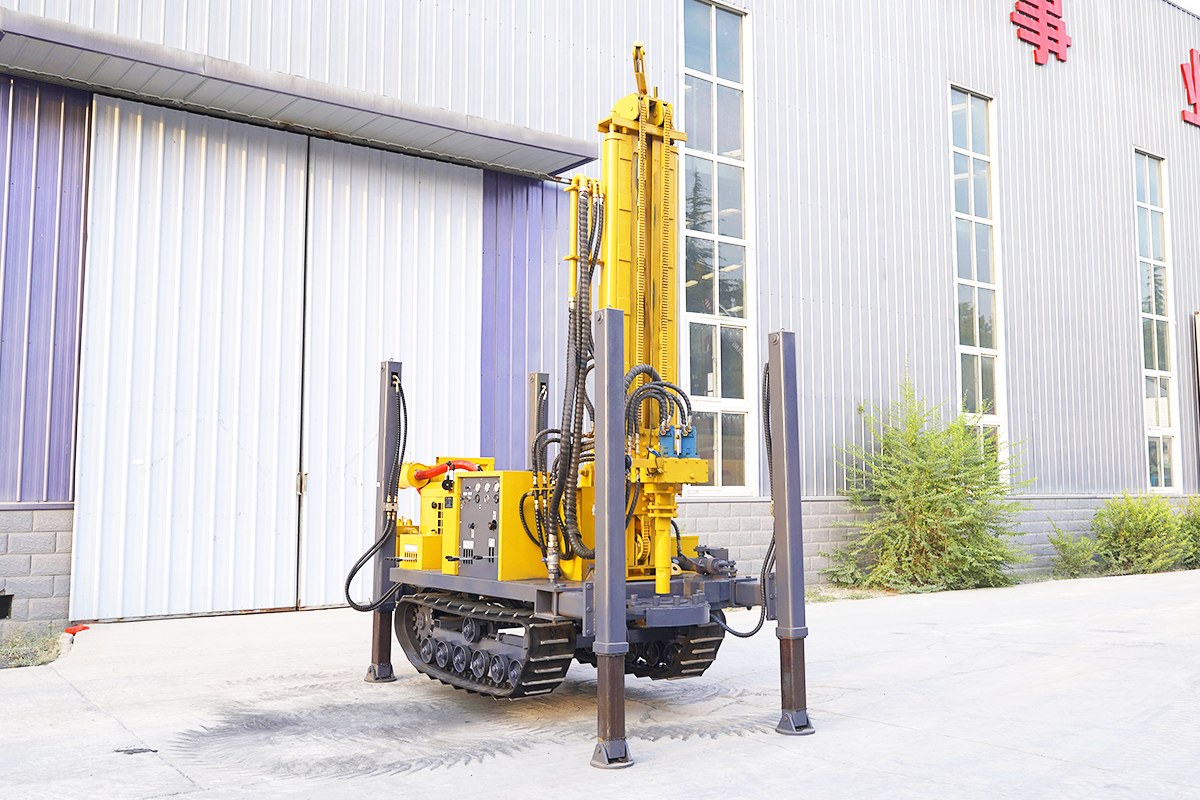

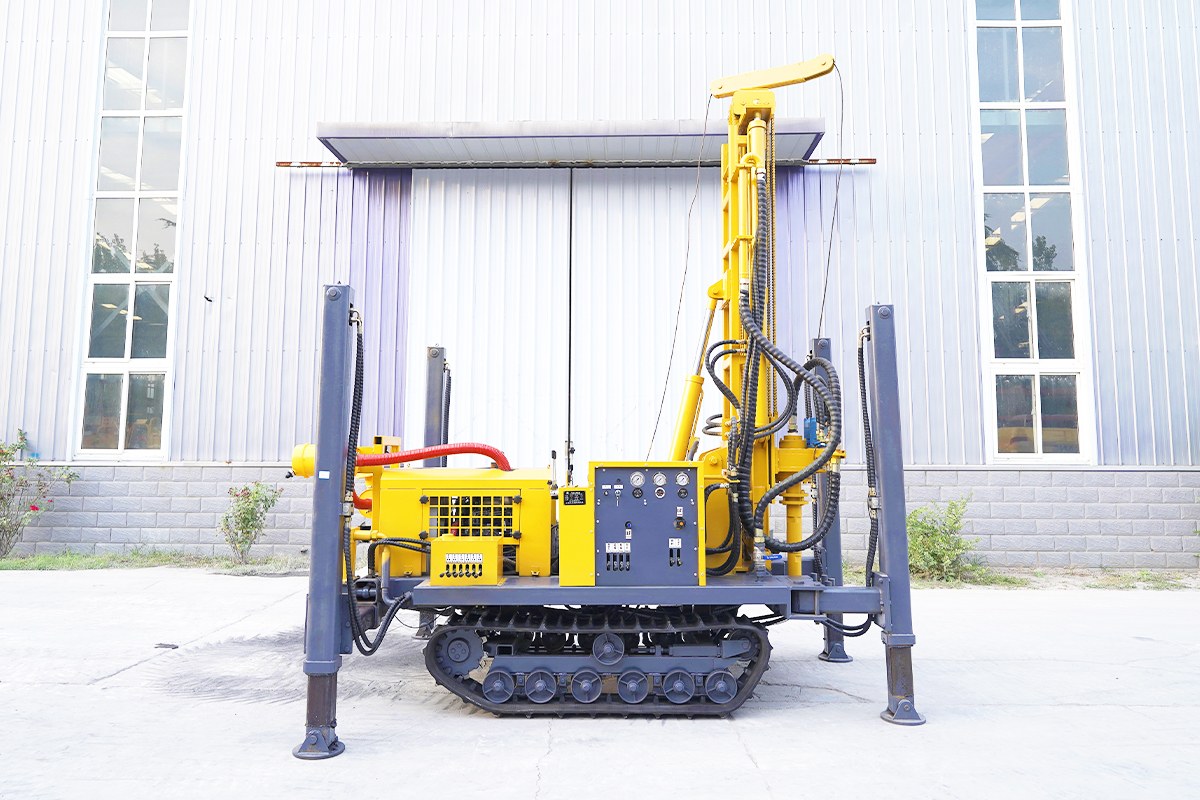

HQZ-180L Pneumatic Drill Rig
Drilling depth: 180m
Drilling diameter: 130-254mm
Main motor power: 42KW
Drilling diameter: 130-254mm
Main motor power: 42KW
Product Gallery
Product Information
Main parameters
| model | HQZ-180L | |
| tower | 3 | m |
| Chassis | Rubber track | / |
| Drilling diameter | 130-254 | mm |
| Drilling depth | 180 | m |
| One-time advancement length | 3.6 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yunnei | / |
| Engine power | 42 | kw |
| working pressure | 1.45-2.5 | mpa |
| Air consumption | 17-31 | m³/min |
| Drill pipe diameter | 76/89 | mm |
| Drill pipe length | 1.0/2.0/3.0 | m |
| Lifting power | 12 | T |
| Swing speed | 40-65 | rpm |
| Rotating torque | 3500-3800 | N.m |
| Dimensions | 3500*1700*2250 | mm |
| weight | 4.5 | T |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
