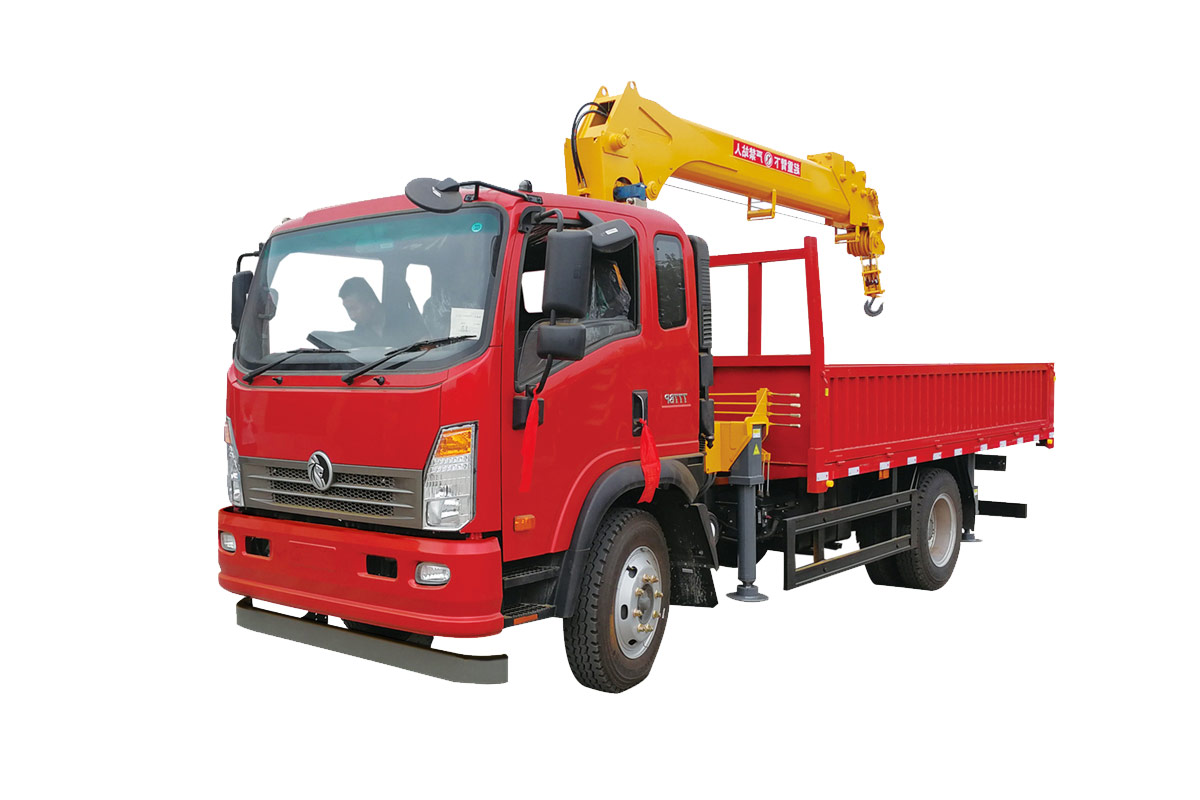

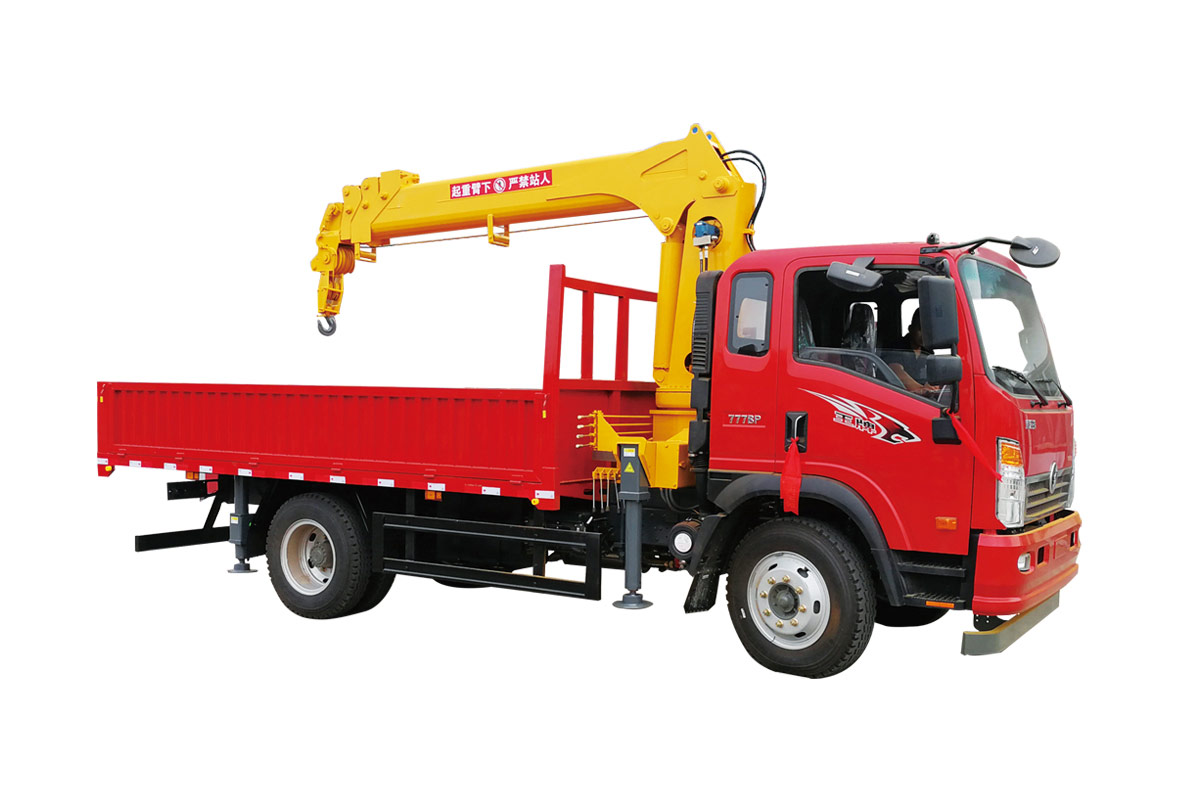

5000KG Truck With Crane
Total weight (kg)：4495
Engine：Yunnei130/Weichai 160
Overall dimensions (mm)：5995*2350*3050
Engine：Yunnei130/Weichai 160
Overall dimensions (mm)：5995*2350*3050
| Chassis | Sinotruk Haoman |
| Emission Standards | China Ⅵ |
| Max.lifting weight (t) | 3.2/5 |
| Crane arm (m) | 9.5/9.5 |
| Main boom length (m) | 3.1/3.1 |
| Max lifting height (m) | 11.5/11.5 |
| Boom section number | 4*4 |
| Max elevation | 0-80° |
| Rotation angle | 0-360° |
| Rotating speed | 2.5 |
| Hydraulic outrigger | Automatic |
1. Standard environmental protection national 5 engine, intercooled supercharged, automatically air-cut brake, high and low speed driving
2. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance
3. Double hooks and double winches to improve work efficiency. The winch adopts high-strength multi-strand anti-rotation phosphor-plated steel wire rope, which has long life, high strength and more stable operation.
