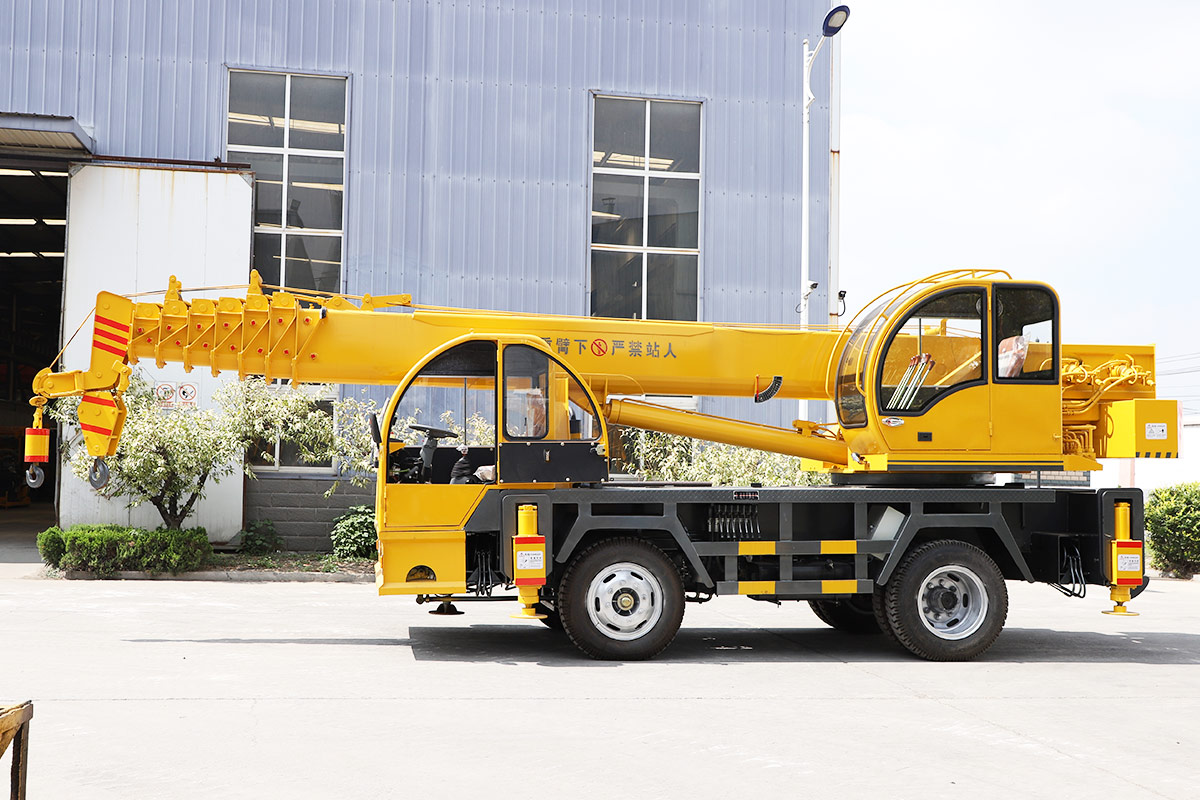

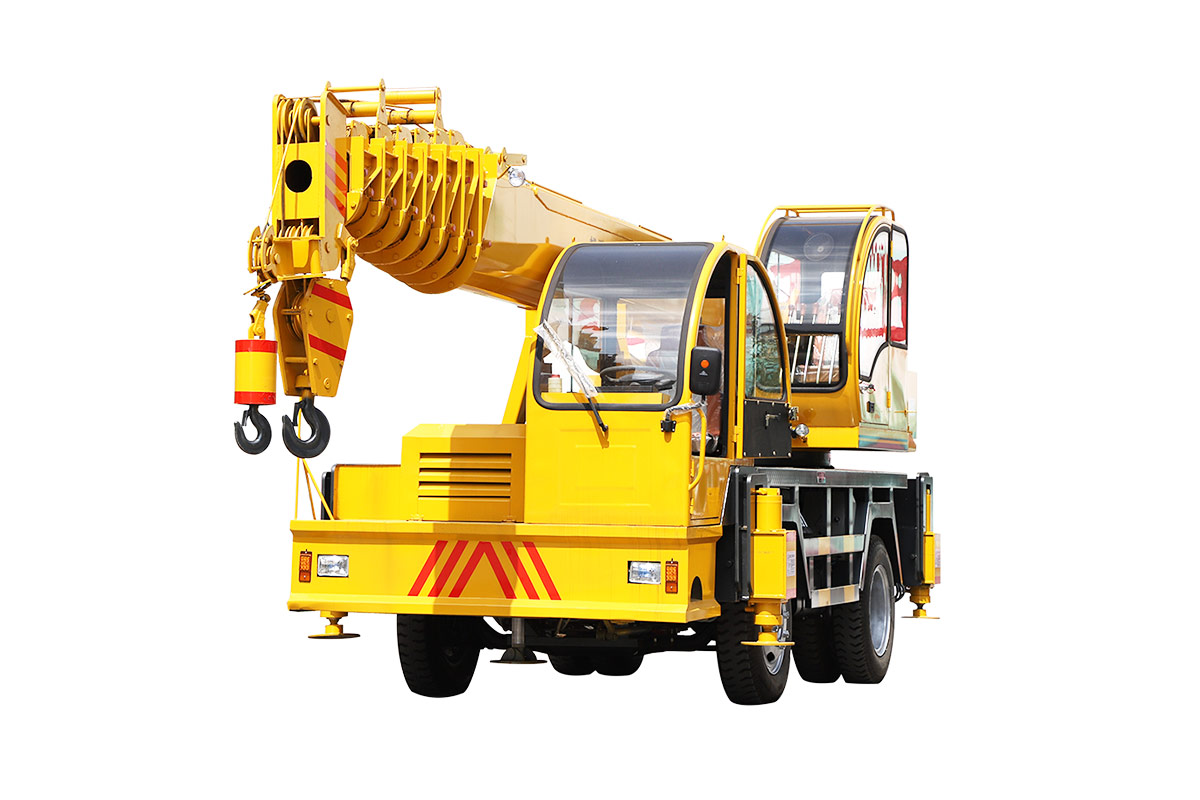

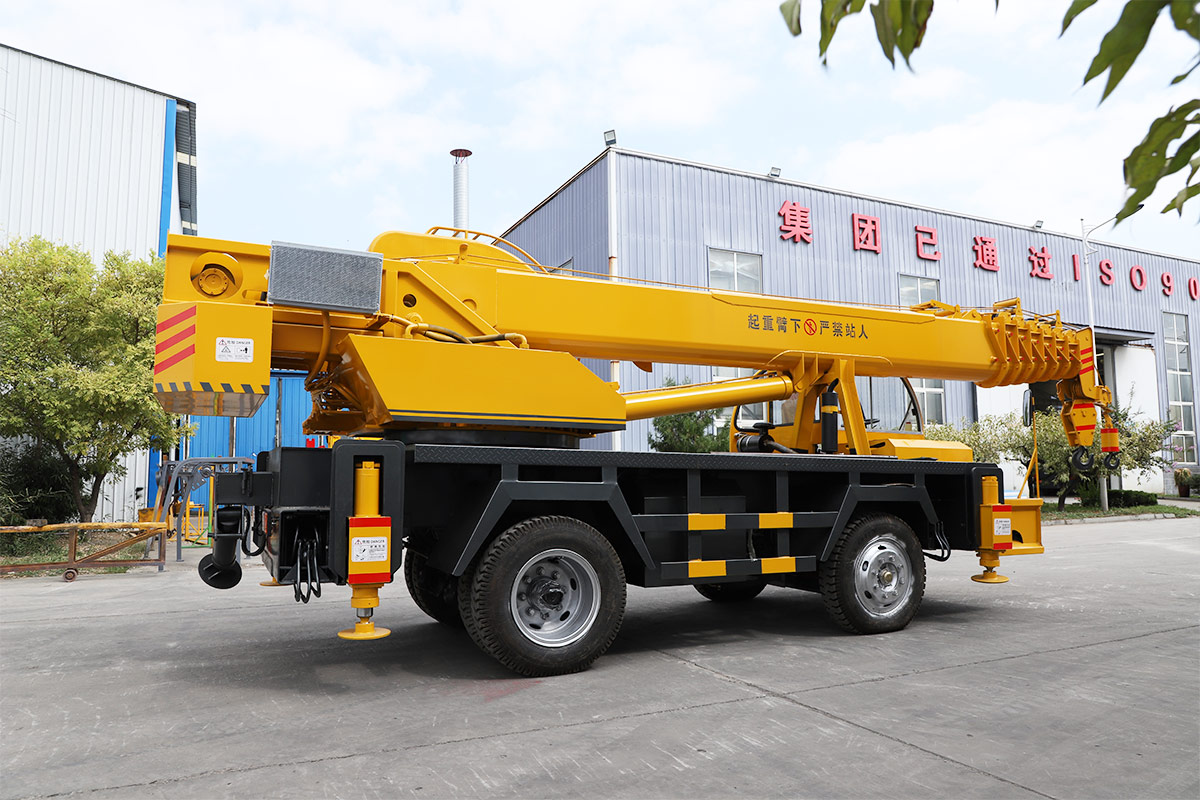

HWQY8T Self-made Truck Crane
Lifting Weight: 8000Kg
Lifting Height: 25m、28m
Power: 75KW
Lifting Height: 25m、28m
Power: 75KW
Cranes are used for lifting equipment, emergency rescue, lifting, machinery, rescue.
Features:
1. The full extension arm is 32m long, and the performance is 5% ahead. The climbing ability is 40%, which makes the machine have good road adaptability.
2. The unique telescopic technology avoids the bending of the core tube and oil cylinder and the breaking of the arm frame caused by misoperation, which improves the safety of the operation.

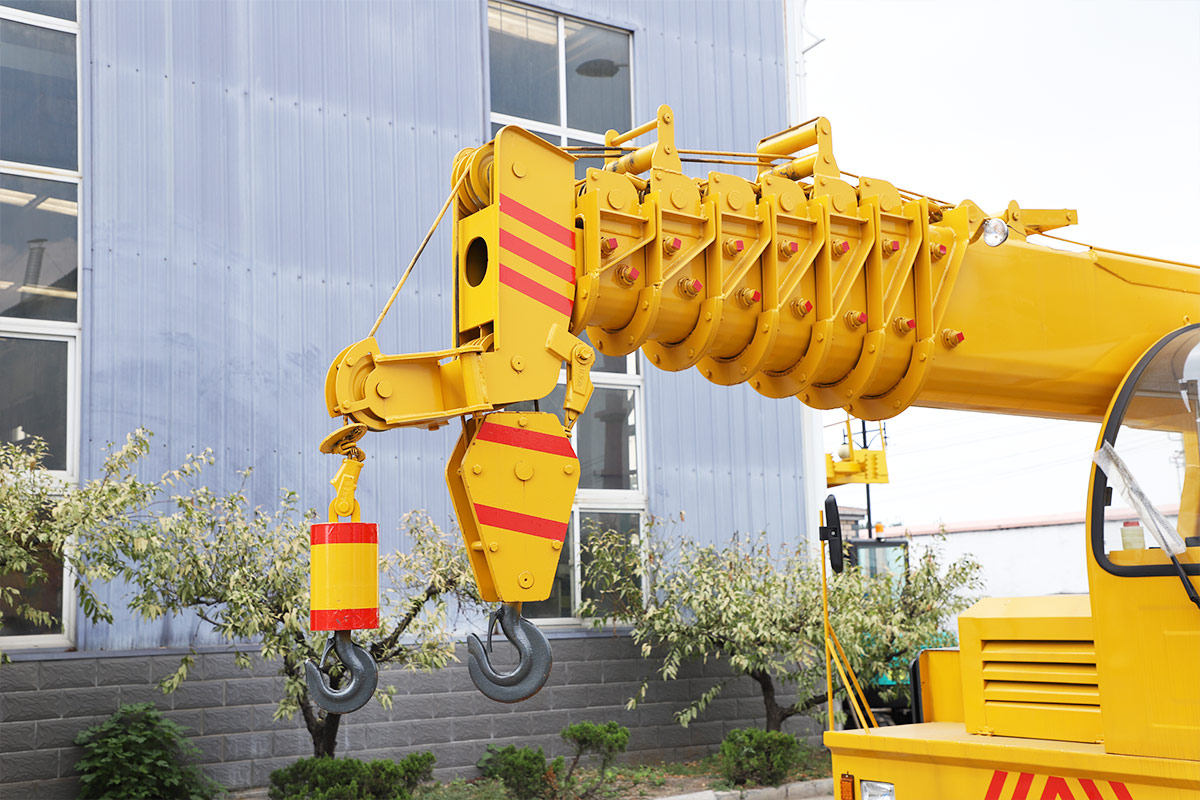

3. The innovative jib system adopts embedded block, plug-in jib head and octagonal jib, which has excellent lifting performance and safe and reliable lifting work.
| Model | HWQY8T |
| Weight | 8000Kg |
| Overall Dimensions | 8m*2.06m*3m |
| Wheelbase | 2.6/2.8 (optional) |
| Max. loading capacity | 8000Kg |
| Max. lifting height | 25m、28m |
| Engine model | 490 |
| Gearbox model | 6-speed |
| Power (kw hp) | 74KW (100hp) |
| Emission Standards | China Ⅲ |
| Braking System | Air brake |
| Steering machanism | Hydraulic Power Steering |
| Boom section number | 4m X 7 |
| Main hoisting mechanism | 8T |
| Outrigger | 5 full hydraulic outriggers (single section) |
| Outrigger span (mm) | 4800mm |
| Protective device | two way hydraulic control |
| Number of work lights | 2 |
| Hydraulic pump | single pump |
| Oil and electricity dual use | 11kw IP6 pole motor |
| Tire | 750-16 |
