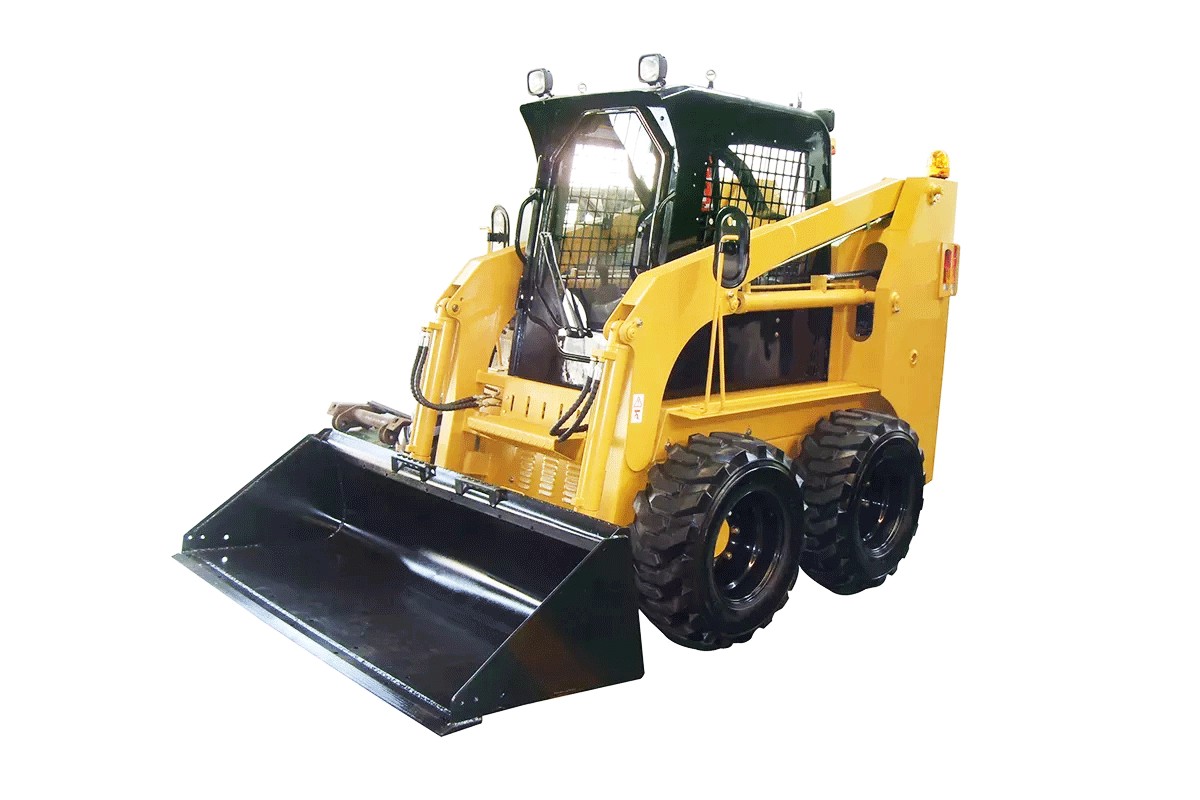

HW-JC75 Skid Steer Loader
Rated Load: 1050Kg
Bucket Capacity: 0.55-0.6cbm
Rated Power: 55kw
Bucket Capacity: 0.55-0.6cbm
Rated Power: 55kw
Specifications | |
Rated operating capacity (kg) | 1050 |
Tipping load (kg) | 2100 |
Bucket capacity (m3) | 0.55-0.6 |
Operating weight (kg) | 3500 |
Max. travel speed (km/h) | 12 |
Hydraulic pump flow (L/min) | 75/125 |
Fuel tank capacity (L) | 60/90 |
Tires | 12/16.5 NHS |
Overall dimensions (mm) | 3560×1900×2050 |
Dimensions | |
Height at maximum extension (mm) | 4070 |
Height to bucket hinge pin (mm) | 3150 |
Width with bucket (mm) | 1900 |
Track width (mm) | 1500 |
Wheelbase (mm) | 1185 |
Ground clearance (mm) | 260 |
Dump angle | 40° |
Dumping height (mm) | 2450 |
Maximum reach (mm) | 710 |
Rollback at ground | 26° |
Angle of departure | 20° |
Engine | |
Maker/Model | xinchai 498T |
Net power | 75hp/2500rpm |
Type | 4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
HW-JC75 Skid Steer Loader
The HW-JC75 Skid Steer Loader is a versatile and efficient equipment designed for various applications. With its unique wheel-type chassis and differential steering system, it offers exceptional maneuverability and control. Whether you refer to it as a skid steer loader, multi-purpose vehicle, or multi-purpose engineering machine, it excels in small job sites, uneven terrain, and frequent job changes.
This high-performance machine is well-suited for a wide range of tasks, including infrastructure construction, industrial applications, dock handling, urban streets, residential areas, farms, barns, airport runways, and more. It can also serve as excellent auxiliary equipment for large-scale construction projects.
Inquire now for the best price.
