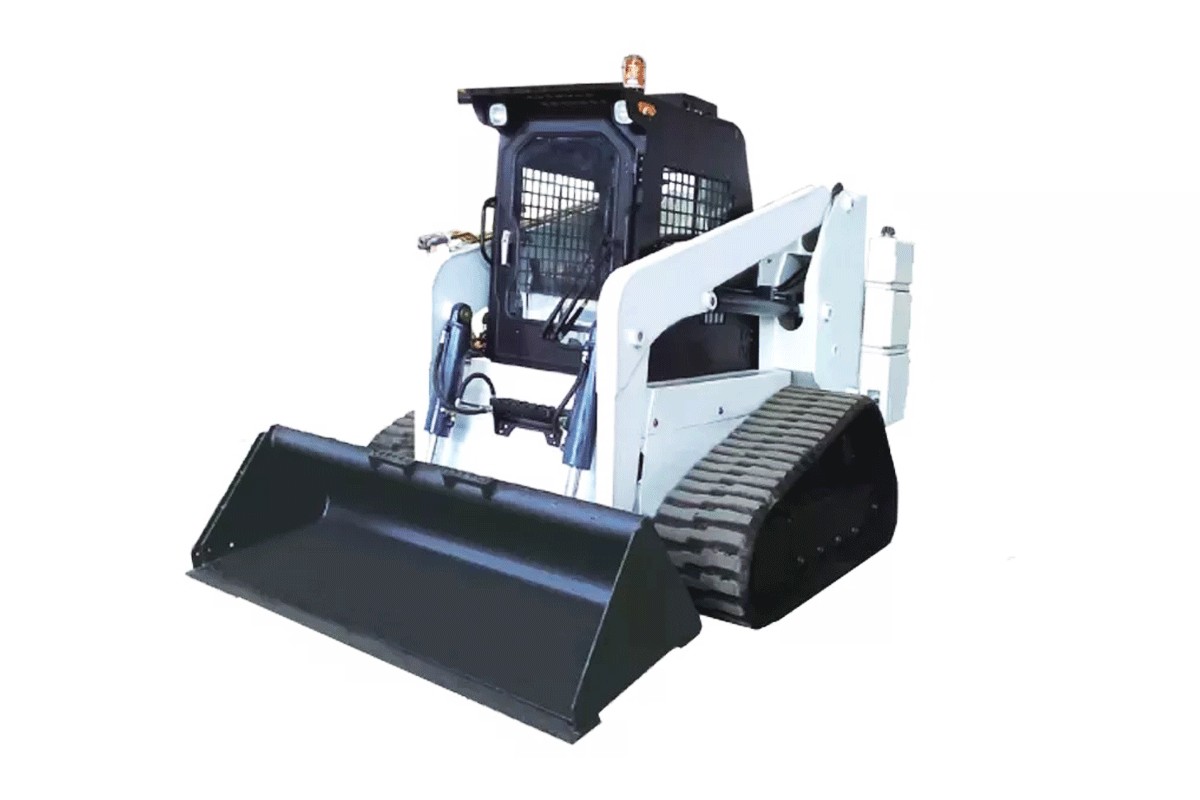

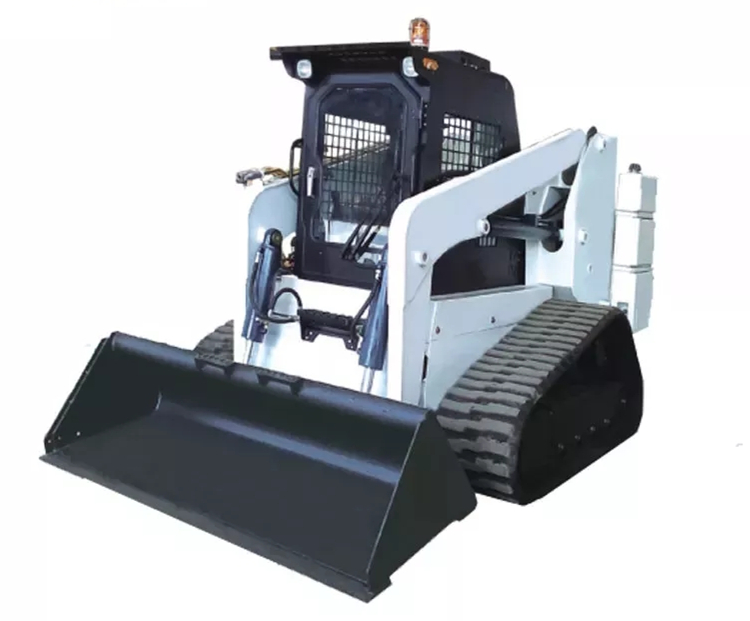

TS series Skid Steer Loader
Operating Load: 700-1500Kg
Bucket Capacity: 0.3-0.6cbm
Rated Power: 36-103kw
Bucket Capacity: 0.3-0.6cbm
Rated Power: 36-103kw
Product Gallery
Product Information
● The TS series features a rubber crawler walking system, which ensures excellent traction on various terrains including soft ground and mountainous environments. With its low grounding ratio, it is specifically designed to tackle operations in challenging landscapes. Additionally, it is equipped with a two-speed motor, enabling the main engine to reach speeds of up to 18 km/h.
● Furthermore, it comes with a high flow system that boasts impressive maximum flow rates of 120 liters/min, 130 liters/min, and 140 liters/min. The rear section of the main machine can be fitted with a ripper, allowing for deep tillage of over 500mm.
| Model | HW-TS50 | HW-TS65 |
| Operating load (Kg) | 700 | 1000 |
| Max Speed (Km/h) | 0.67 | 0.67 |
| Rated flux (L/min) | 60 | 75 |
| High Flow Flux (L/min) | ||
| Tire (track) model | 300X52.5 | 320X84 |
| Rated power (Kw) | 36 | 55 |
| Fuel tank capacity (L) | 50 | 80 |
| self weight bucket (Kg) | 2800 | 3800 |
| Bucket capacity (m3) | 0.3 | 0.5 |
