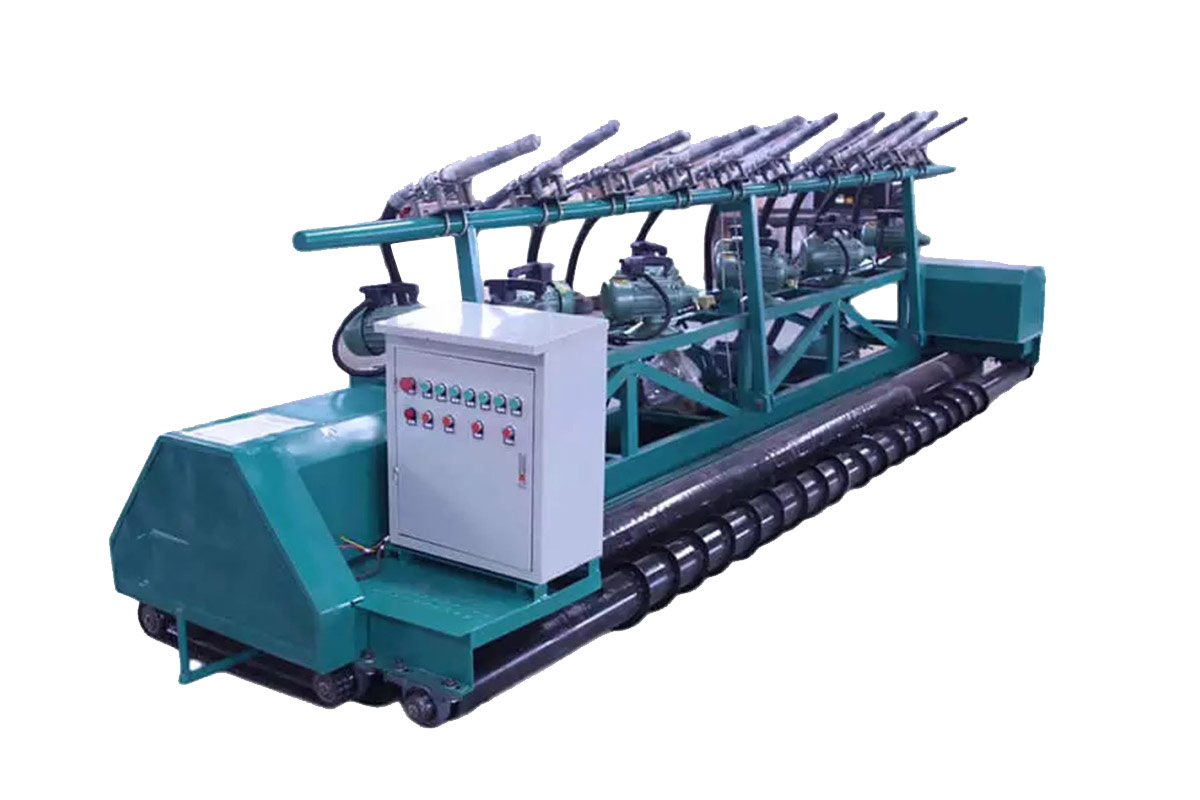

HW219 Concrete Vibrator Paver
Working width: 4m
Paving Thickness: 300mm
Efficiency: 5km/day
Paving Thickness: 300mm
Efficiency: 5km/day
Special design for concrete road building project
Concrete roller paver + concrete vibrators
About 5KM per day
Specification | Engine Details |
Model:HW219 | Electric Motor:380V/50HZ |
Working Width:4m | |
Weight:1 Ton (4m working width) | |
Diameter of Roller: 219mm | |
Quantity of Roller: 2 Rollers and 1 Auger | |
Travel Speed: 0-3 m/min | |
Vibrator details:50mm,2m Add 50cm length, with one concrete vibrator | |
Walking Tube Rotation Rate: 36rpm | |
Max Paving Thickness: 300mm | |
Dimension: L*1300*1200mm |
